In the rapidly evolving electronics industry, designing equipment capable of withstanding harsh electrical environments has become crucial. Sensitive devices such as precision medical instruments and high-speed computing equipment require immunity from electrical disturbances to ensure their accuracy and reliability. Electrical isolation technology plays an indispensable role in this regard by creating a secure electrical “buffer zone” to shield devices from the impacts of high voltages and electromagnetic interference. In recent years, with the advent of Active Optical Cable (AOC) technology, not only has this been achieved, but significant strides have also been made in data transmission efficiency and security. This article will explore how AOC technology, while providing electrical isolation, also facilitates additional data signal transmission, safeguarding high-end equipment from harm.


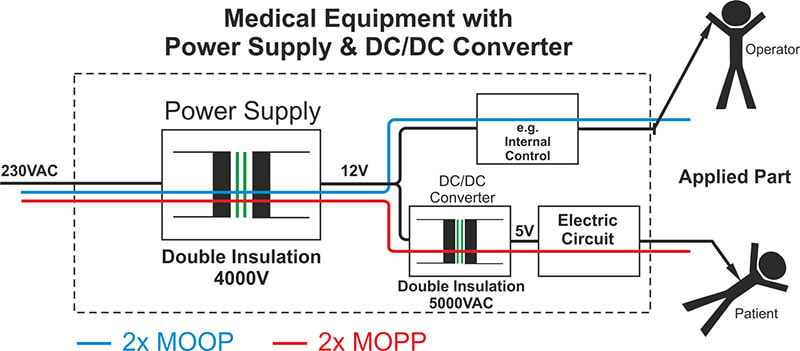

What is Electrical Isolation?

Electrical isolation is a protective measure that prevents potentially dangerous high voltages from entering sensitive circuits. It is achieved by creating a barrier between circuits that can block undesired electrical current while allowing signals to pass through. This can be accomplished using various techniques, with the most common being transformer isolation and optocoupler isolation.


Principles of Electrical Isolation

The principle behind electrical isolation is simple: isolation from hazards. This isolation can be physical, such as an air gap, or technological, like the use of isolation transformers. In certain cases, such as dealing with very high voltages or extremely weak signals requiring protection, this isolation becomes especially critical.


Introduction to AOC Technology

Active Optical Cable (AOC) is a modern data transmission tool equipped with optoelectronic transducers that convert electrical signals into optical signals and transmit them through optical fibers. AOC serves as an ideal solution to address limitations of traditional cables, including speed constraints, short transmission distances, and susceptibility to interference. In AOC, the transmission of optical signals allows data to be transferred at speeds close to the speed of light, enabling high-speed data communication.


Working Principles of AOC Technology

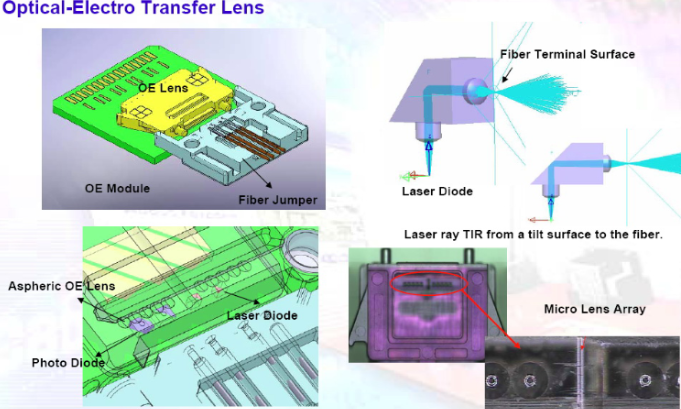

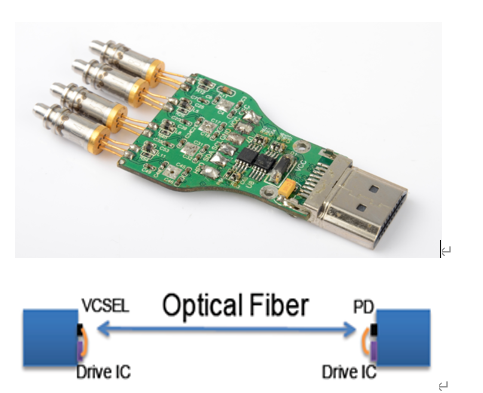

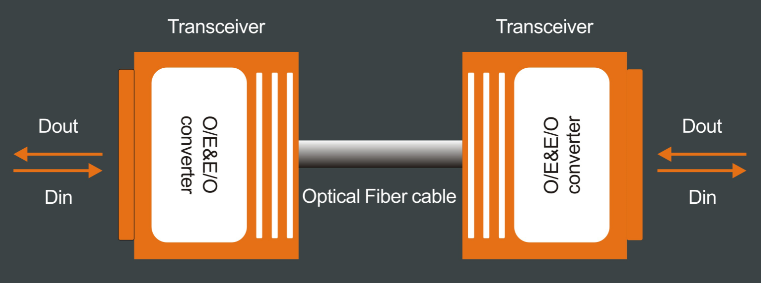

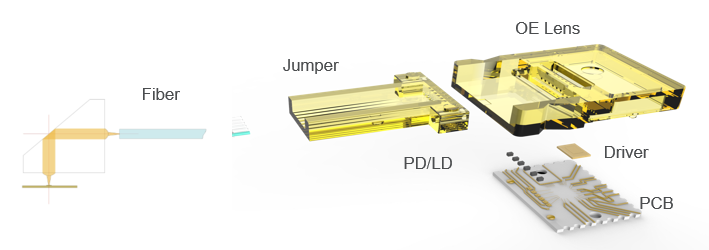

AOC converts electrical signals into optical signals at one end using an optoelectronic transducer, which are then transmitted through optical fibers. Upon reaching the other end, another optoelectronic transducer converts them back into electrical signals. This conversion process does not involve electrical connections, providing a natural isolation layer that prevents electrical interference and voltage fluctuations from affecting signal purity and device safety.


Applications of Electrical Isolation in AOC Technology

Implementing electrical isolation in electrical equipment using AOC technology significantly enhances overall system security and stability. This isolation is particularly crucial in sensitive devices like medical instruments or precision measurement tools. AOC’s provided isolation not only prevents voltage surges but also reduces signal loss and errors caused by electromagnetic interference.


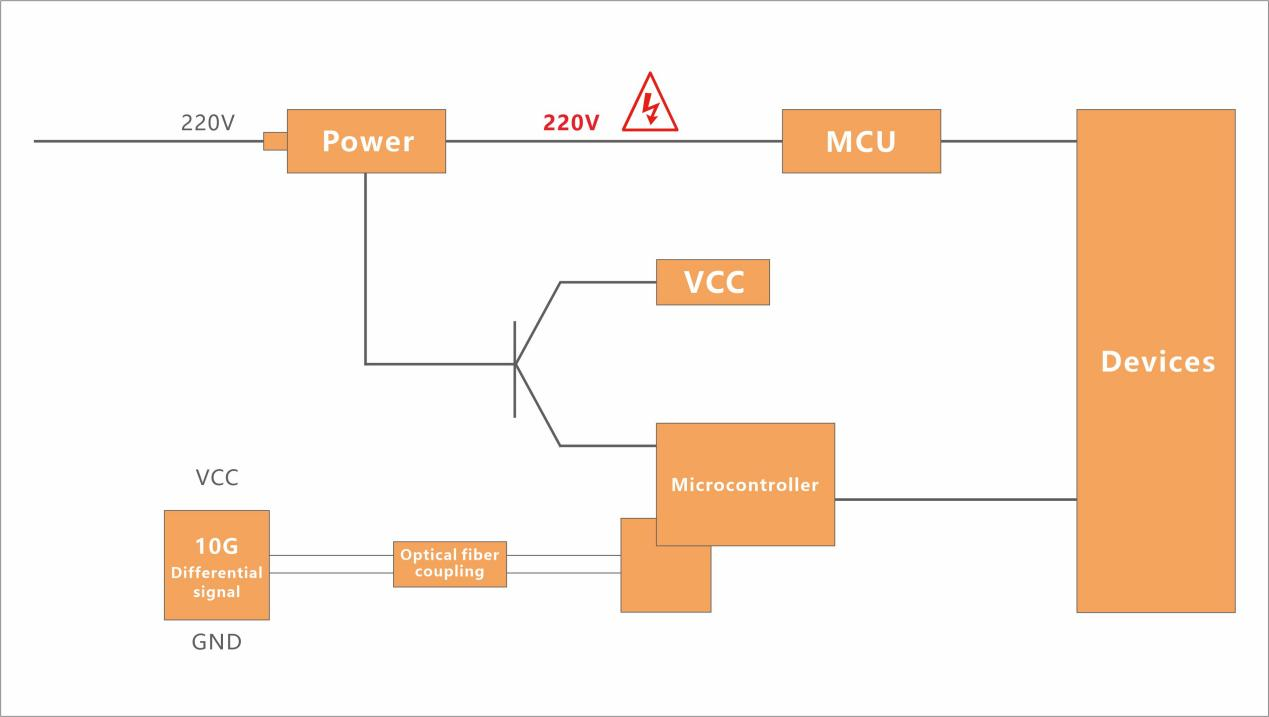

Combining AOC and Electrical Isolation

In traditional electrical systems, electrical isolation is typically achieved through physical barriers or air gaps, which may not be efficient in high-speed data transmission scenarios. The emergence of AOC technology offers a more elegant solution. Optical fiber coupling not only overcomes the limitations of physical isolation but also enhances the quality and speed of data transmission.


Advantages of AOC Technology

(1) Enhanced System Security: AOC technology transmits data via optical fibers, immune to traditional electromagnetic interference, reducing the risk of data loss and system failures. Additionally, as optical fibers are non-conductive, they protect devices from damage during electrical faults.

(2) High-Speed Data Transmission: Optical fiber transmission rates far exceed those of copper cables, making AOC an ideal choice for data centers and high-performance computing environments. For example, a 10Gbps AOC can handle rapid data transfers with ease, without the limitations of traditional cables.

(3) Long-Distance Transmission and Signal Integrity: Compared to copper cables, optical fibers experience significantly less signal attenuation, allowing longer distance transmission without the need for repeaters or amplification. This makes AOC an ideal choice for connecting remote devices while maintaining signal integrity and quality.


Applications of AOC Technology

The unique advantages of AOC technology make it the preferred transmission medium in various high-end application areas. Here are some key application domains for AOC technology:

Data Centers: High-speed and reliable data transmission is crucial in data centers. AOC provides a high-performance solution capable of supporting rapidly growing bandwidth demands while minimizing latency and packet loss during transmission.

Medical Devices: Precision medical equipment such as MRI scanners and other imaging devices require clarity and reliability in signal transmission. The use of AOC in these applications reduces signal interference, ensuring high-quality imaging and diagnostic results.

Industrial Automation: In automated production lines, sensors and control systems require fast and accurate data exchange. AOC’s electrical isolation and high-speed transmission capabilities make it an ideal choice in industrial environments, especially in the presence of high voltages or strong electromagnetic interference.

Network Communications: With the development of 5G and future communication technologies, the demand for speed and bandwidth in data transmission continues to rise. The introduction of AOC technology not only enhances data transmission rates but also improves the security of network communication due to its isolation characteristics.


Case Study: Application of AOC Technology in Precision Medical Imaging

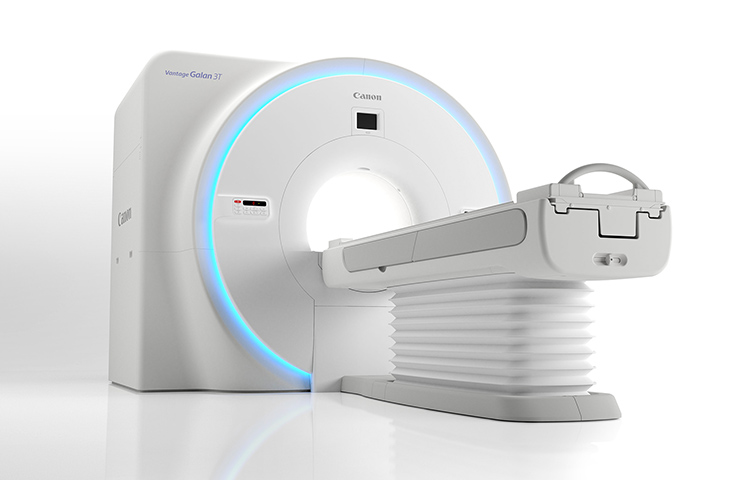

In medical imaging technology, particularly in the field of magnetic resonance imaging (MRI), signal integrity is crucial to ensuring image clarity and diagnostic accuracy. However, these devices generate extremely high electromagnetic fields during operation and utilize high voltages, posing significant challenges to signal transmission. Furthermore, the environments surrounding these devices are rife with electromagnetic interference (EMI) due to complex electrical facilities and dynamic workflows. These interferences can introduce noise during signal transmission, impacting image quality and diagnostic reliability.


Problem Identification In this case

the management team of a medical imaging center faced two primary issues. Firstly, their MRI devices frequently experienced signal loss and degraded image quality during operation due to multiple sources of electromagnetic interference in the vicinity. Secondly, as high-resolution image data needed to be transmitted over long distances, they found that using traditional copper cables resulted in slow data transmission speeds and frequent signal attenuation. These issues not only affected the efficiency of medical imaging but also increased patient wait times, potentially leading to the loss of critical clinical information.


Introduction of AOC Technology To address these challenges

the imaging center decided to introduce AOC technology. Active Optical Cables (AOC) provide an innovative method of signal transmission by incorporating built-in optoelectronic transducer modules. These optical cables can convert electrical signals into optical signals, transmit them through optical fibers, and then convert them back into electrical signals at the receiving end. The core advantage of this process lies in the fact that optical signals are impervious to electromagnetic interference, and optical fiber transmission itself provides high electrical isolation.


Implementation Process

The imaging center’s technical team initiated the implementation of AOC technology. They replaced traditional copper cables connecting the MRI scanner and data processing servers with AOC. The installation process was straightforward and did not require significant alterations to existing facilities. Furthermore, thanks to the high bandwidth characteristics of AOC, they were able to increase data transmission rates, enabling higher-resolution image transmission without introducing significant latency.


Observed Improvements

Following the deployment of AOC, the imaging center observed multiple improvements. Image quality significantly improved, and instances of signal interference and data loss were greatly reduced. Doctors and technicians reported increased image clarity, resulting in more accurate and reliable diagnoses. Additionally, the enhancement in data transmission speed and efficiency streamlined workflows, reducing patient wait times.


Long-term Benefits

AOC technology not only proved its value in improving day-to-day operational efficiency but also demonstrated potential in reducing equipment failures and maintenance costs. This long-term reliability allowed the imaging center to plan for more scans, increasing patient throughput. Moreover, patient and healthcare provider confidence in imaging services increased as a result.

By introducing AOC technology into their MRI imaging systems, this medical imaging center not only overcame the challenges of electromagnetic interference but also enhanced the efficiency and security of the entire imaging process. This case highlights the dual value of AOC technology in protecting sensitive medical equipment from high voltages and electromagnetic interference while providing additional data transmission capability.



through an in-depth exploration of the principles of electrical isolation, the workings of AOC technology, and its applications in sensitive equipment, reveals the significant advantages of AOC technology in enhancing system security, data transmission efficiency, and operational reliability. Through an extensive case study, we see the tangible benefits that AOC brings to medical imaging centers, addressing limitations of traditional cable transmission solutions while improving diagnostic accuracy and patient experiences.

AOC technology represents an efficient data transmission solution that, through the combination of electrical isolation and optical signal transmission, provides a secure and high-speed communication pathway for modern electronic devices. In multiple domains such as data centers, healthcare, industrial, and communications, the use of AOC signifies a gradual replacement of traditional connectivity methods, ushering in a new era of performance and security.

As technology continues to advance, the application scope of AOC technology is expected to expand further. Its advantages, including high bandwidth, low signal attenuation, interference resistance, and inherent electrical isolation, position it to play a more critical role in future technological innovations. For instance, with the development of technologies like the Internet of Things (IoT) and machine learning, the demand for rapid and reliable data transmission will continue to grow, making AOC’s applications even more widespread.

In the end, AOC technology, while protecting sensitive equipment from electrical risks, represents a quantum leap in data transmission. Through ongoing innovation and application, AOC will continue to have a positive and far-reaching impact on our lives and work.
