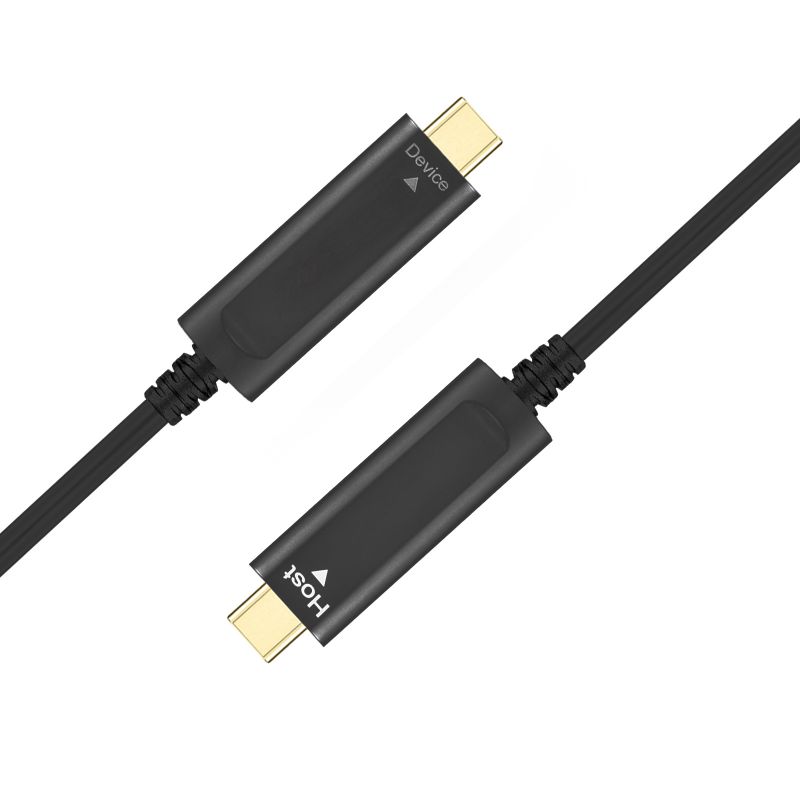

The usb 3.1 gen2 active optical cables provide plug-and-play connectivity to existing electrical connectors that scale to greater distances than copper links could previously handle. USB 3.1 GEN2 AOCs support the latest USB 3.1 Gen 2 standards, making them ideal for AR/VR, conference room cameras, computer vision, and storage. Active optical cables for usb 3.1 gen2 Type C to Type C devices use the latest USB Type-C connector. Providing reliable plug-and-play compatibility, the usb 3.1 gen2 C-C AOC delivers superior performance.

This optical fiber cable can use machine vision, remote monitoring, etc., without an on-site power supply.



USB3.1 USBAM-AF AOC



Specifications USB 3.1 Gen2 Active Optical Cable:



Connector A

USB 3.1 Type-C Male

Connector B

USB 3.1 Type-C Male

Cable

Copper Optical Hybrid Cable

Protocols Supported

USB 3.1 GEN 2, USB 3.0, USB 2.0

Max Data Rate

10Gbps

Cable Diameter

4.0mm

Max Length

30m (98ft)

Minimum Bend Radius

30mm

Operating Temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)



Key Features of USB 3.1 Gen2 AOC:

  • This USB 3.1 Gen2 standard has a super speed of 10Gbps and complies with the usb 3.1 gen2 standard
  • Signals are uncompressed, and the image quality is undistorted
  • A copper-fiber hybrid cable that resists electromagnetic interference does not emit radiation and is radiation-free
  • Interface USB Type C standard
  • 850nm VCSEL and PIN photodetector
  • Supports hot plugging, Plug, and play
  • An application requiring a cable with an OD of less than 4.5 mm
  • No external power supply is needed
  • Power the remote device with a maximum of 5V 1.5A
  • The length is adjustable from 0.2 to 15 meters, and other distances can be configured.



Applications of USB 3.1 Gen2 Active Optical Cable:

-Mobile Terminal

-LED Signboards

-Home Theatre

-Medical Imaging Equipment

-Digital Signage

-TV Broadcast Station

-Conference Room

-Airplane On-board Video System



Benefits of USB 3.1 Gen 2 AOC:

AOC USB 3.1 Gen2 cables provide the strongest and most secure connection between electronic devices. Our focus will be on the three most beneficial features of the USB 3.1 Superspeed cable from AOC.

Transmission rate at superspeed:

AOC cables with USB 3.1 support fast data transmission. It has a super speed of about 10 Gbps and is known as USB 3.1 Gen 2. A year’s worth of music can be transferred in just 30 seconds, twice as fast as USB 3.0. At SmartAVlink, we offer superior USB 3.1 superspeed AOC cables for fast and safe transfers.





Performance of a stable transmission:USB 4 Cable

The USB 3.1 AOC cable provides stable performance and secure data transfer despite the high transmission rate. The cable has no RF interference in complex environments, reducing electrical disturbances. For this reason, many high-tech companies use USB 3.1 Gen 2.

SmartAVlink’s products are continuously dedicated to providing stable transmission performance. You can always rely on our capabilities and products.

Switches reversible:

The high-speed usb 3.1 gen2 AOC cable is designed to be backward compatible. In other words, it is well-matched with all previous USB devices, including USB 3.0 (5Gbs) and USB 2.0 (480Mbps). It is where we come in. With the improved encoding technique within our USB 3.1 superspeed cables, transmission rates remain faster no matter what device is connected.



Conclusion:

Compared with traditional USB cables, USB 3.1 gen2 10 Gbps AOC, with backward compatibility, reduces bulk, improves bend radius, and offers more excellent EMI immunity. We at SmartAVlink source our cables from an ISO 9001-certified factory, which meets or exceeds the highest quality standards worldwide. Each cable includes a quality control code.
