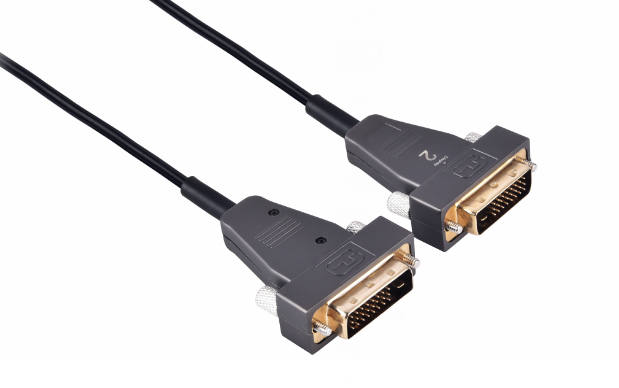

SDVC-8700 product is a hybrid fiber DVI active optical cable (AOC) DVI active optical cable (AOC) with high performance, low power consumption and low cost Using optical fiber ,to  replace  copper  wire  as  the  high-speed  signal  transmission  medium, DVI AOC can perfectly transmit HD image over 100 meters. Compared with. the traditional copper wire, DVI AOC is much longer, softer, more slim with better signal quality and perfect EMI/EMC feature.Compared with other,HDMI optical fiber transmission solution, DVI AOC is easy to use,  no external power supply needed.

Here is how to design the DVI AOC, see follwoing design diagram :

What is DVI AOC ?

Key Features :

◆ Long distance transmission, over 100 meters

◆ Single channel DVI interface, support up to 10.2Gbps bandwidth

◆ Program and store monitor’s EDID information inside of source connector

◆ Thinner, lighter and softer than conventional copper cable.

◆ No radiation, and highly resistant with EMI

◆ Supports computer resolutions to 1080P and 4K2K(30P).

◆ Request no external USB power supply

Applications

◆ Digital Signage

◆ LED signboards in streets and in stadiums

◆ Medical Imaging Equipment

◆ Airplane On-board Video System

◆ Home Theater

◆ Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

◆ TV Broadcast Station

◆ Conference Room Video Equipment

◆ Security systems
